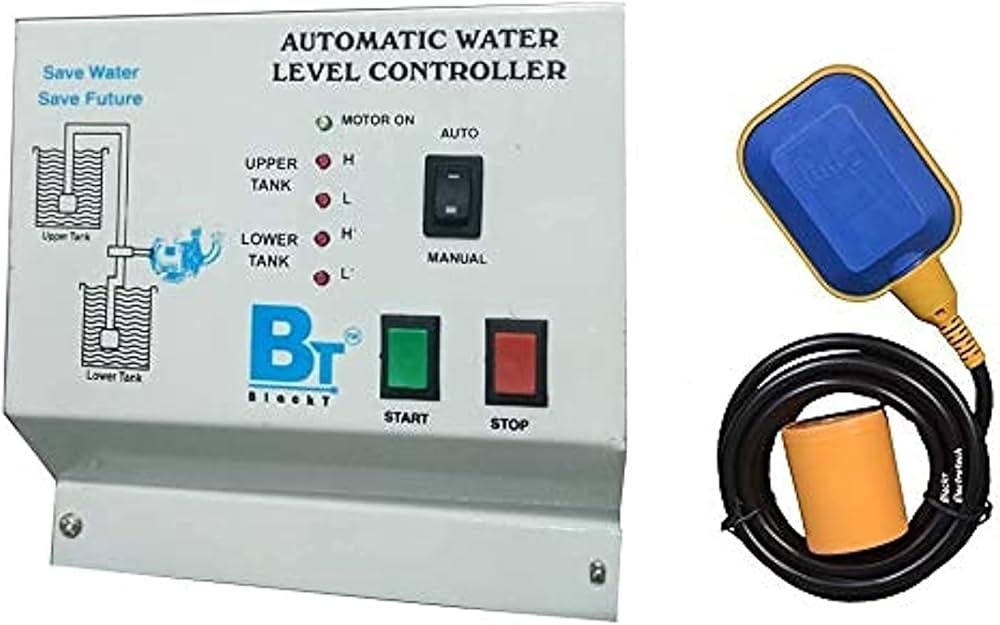

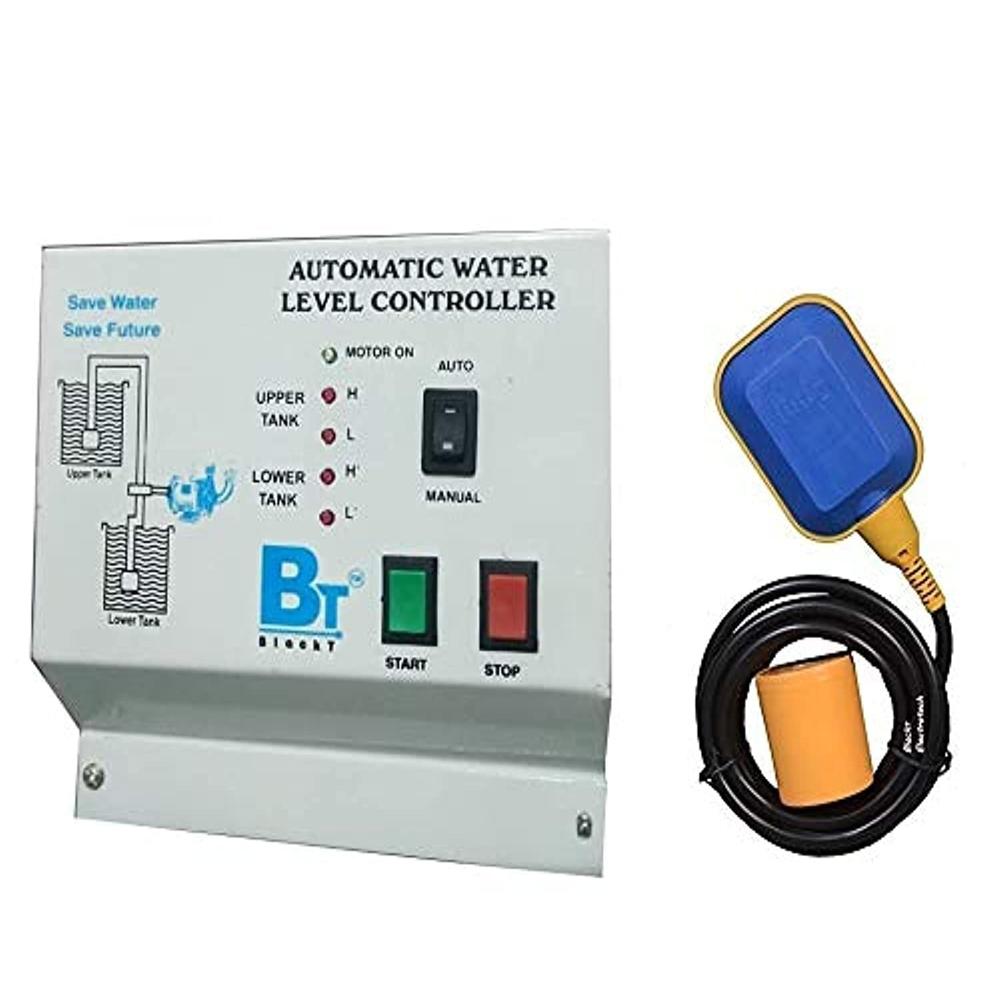

Auto Water Level Controller with Float Switch
2200.0 INR/Number
Product Details:
- Connectivity Type Wired
- Phase Single Phase
- Usage & Applications Household tanks, commercial buildings, industrial water tanks
- Features Auto ON/OFF, dry run protection, LED status indicators, compatible with different pump types
- IP Rating IP65 (Controller unit)
- Measuring Range Up to 3 meters water tank depth
- Display LED Indication
- Click to View more
X
Auto Water Level Controller with Float Switch Price And Quantity
- 1 Number
- 2200.0 INR/Number
Auto Water Level Controller with Float Switch Product Specifications
- Float Switch
- Automatic water level monitoring & pump control
- 5A (max switching current)
- 2%
- Single Pole
- Relay Output
- Standard (float diameter approx. 30mm)
- Wall Mount
- Float Switch
- Atmospheric
- 50Hz/60Hz
- Surface Mount
- 120mm x 90mm x 50mm (approx.)
- Overload and dry run protection
- AC 220V/230V
- Household tanks, commercial buildings, industrial water tanks
- Auto ON/OFF, dry run protection, LED status indicators, compatible with different pump types
- 350 g (approx.)
- Wired
- 0C to 55C
- Single Phase
- Up to 3 meters water tank depth
- Standard ambient
- 220-240V AC
- Auto Water Level Controller with Float Switch
- LED Indication
- IP65 (Controller unit)
- ABS Plastic
- 1.5 meters (customizable)
- Electromechanical
- 1HP pump (approx. 750W)
- No Water/Low Water Level Alarm (optional)
- White/Blue (controller box)
- Suitable for both underground and overhead tanks
- 50mm
- <1 sec switching delay
Product Description
Features:1) Switches ON the Pump when the water in the Overhead Tank goes below the Pre-decided minimum level.
2) Switch OFF the Pump when the water Level in the Overhead Tank Reaches the Maximum Level therefore Prevents Overflow.
3) Switches OFF the pump when the water Level Reaches the Minimum Level in the Under Ground Thank threrefore prevents Dry Running.
4) Low Maintenance.
5) No more overflow or Dry Run thus Saving Water Electricity & Manpower.
6) Increase the Pump set life.
7) Switch ON & OFF automatically.
8) No current/Voltage is passed through Water, therefore No Electrolysis Salt Deposition. Controller Unit 16 Amp Load Capacity & Upto 2 Hp Motor
Effortless Water Management
Say goodbye to water wastage and pump burnout. This controller automatically switches your pump ON or OFF by using a float switch to monitor water levels with impressive accuracy. Suitable for residential and commercial tanks, it helps maintain optimal water usage and prevents manual intervention.
Dependable Safety Features
Integrated dry run and overload protection ensure the longevity of your pump and system. Optional alarms instantly notify you of low or no water levels, minimizing risks and maintenance. The IP65-rated enclosure shields the controller from dust and water, supporting robust 24/7 operation.
Easy Installation & Custom Compatibility
With a 1.5-meter customizable cable and standard float design, installation is straightforward for both new and existing tanks. The system blends with single-phase setups, wall or surface mounts, and suits various pump types, making it a versatile solution for households and industries alike.
FAQ's of Auto Water Level Controller with Float Switch:
Q: How does the Auto Water Level Controller function?
A: This device uses a float switch to detect the water level in your tank. When the water level falls below a set point, the controller automatically activates your pump. Once the desired level is reached, it turns the pump off, ensuring your tank never overflows or runs dry.Q: What types of tanks and pumps is this controller compatible with?

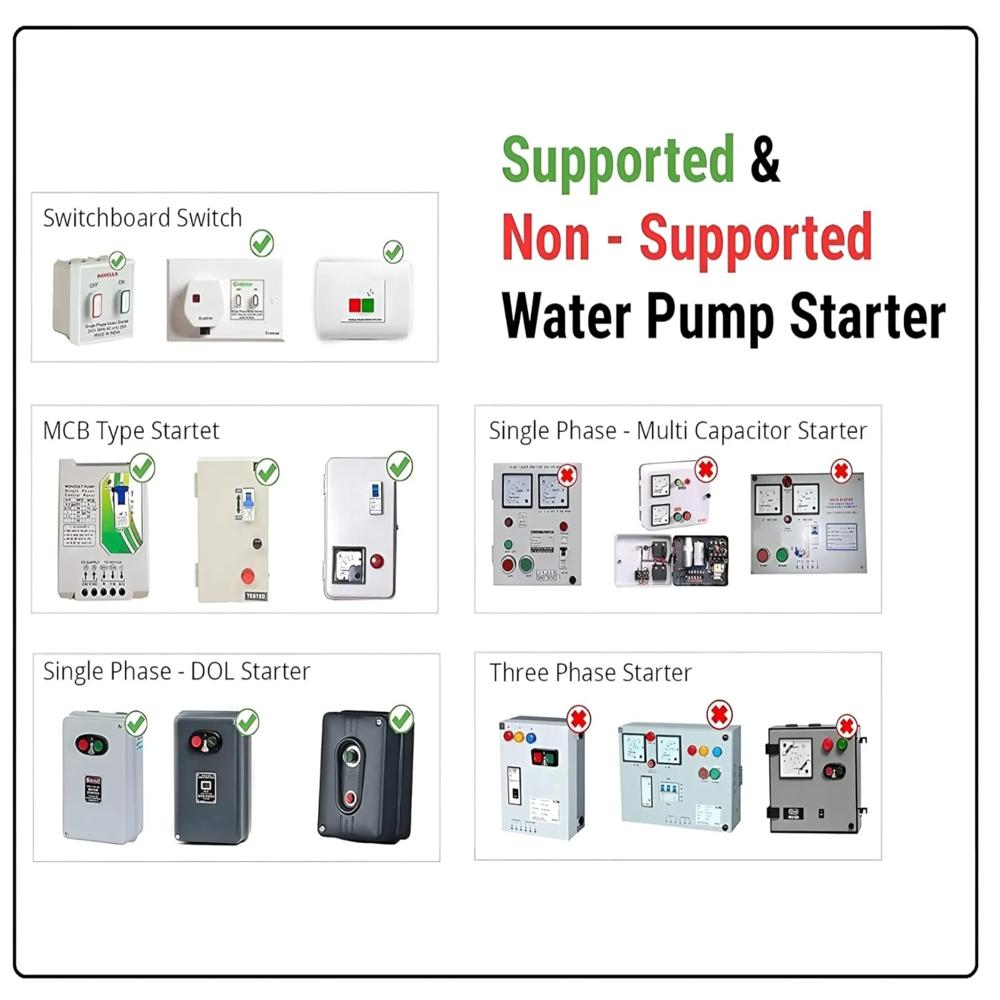

A: This controller supports both underground and overhead tanks and works with single-phase pumps up to 1HP (approx. 750W). Whether for domestic, commercial, or industrial use, it accommodates standard pump types commonly used for water supply.Q: Where should I install the controller and float switch?

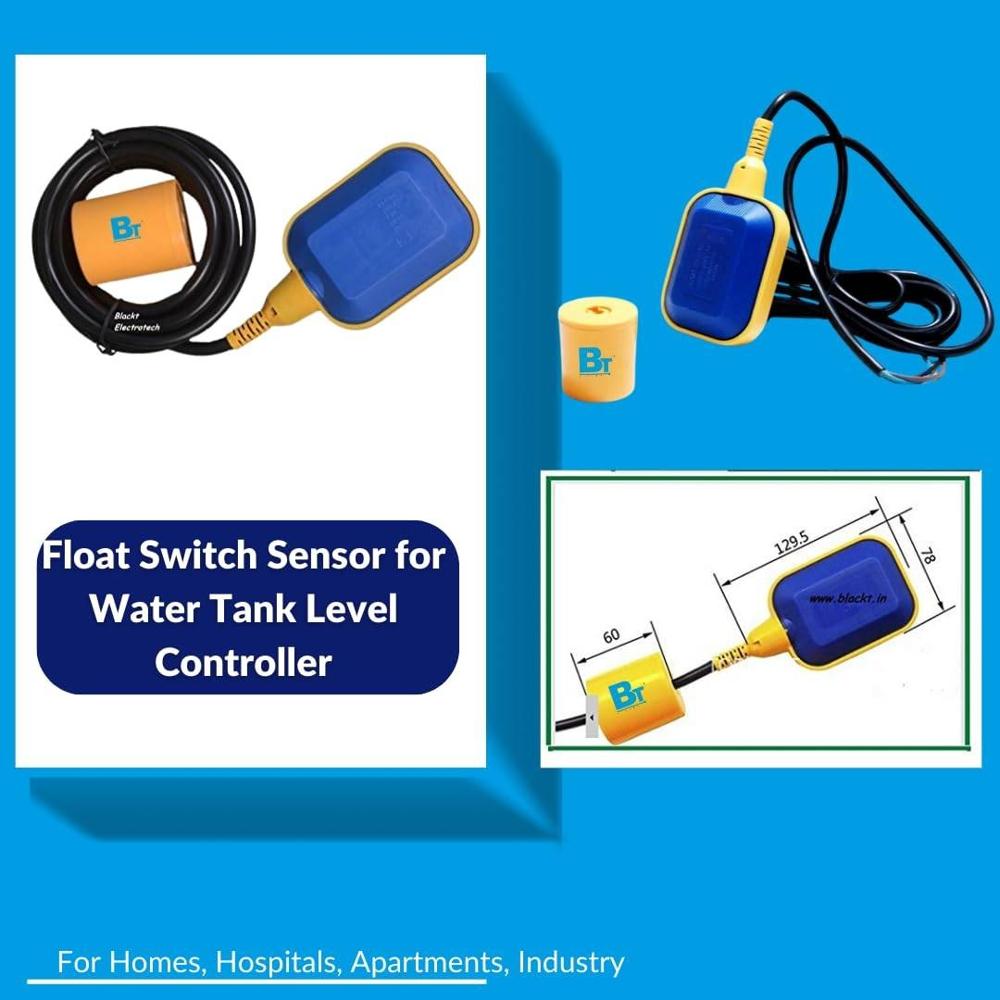

A: The controller box is designed for wall mounting in a dry location close to the tank and pump. The ABS plastic float with its 1.5-meter cable (customizable) should be installed inside the tank at the recommended immersion depth (minimum 50mm) for reliable operation.Q: What protections are built into the system?
A: The controller provides overload and dry run protection, safeguarding your pump against damage from running without water or electrical overloads. The IP65-rated enclosure ensures resistance against dust and water ingress.Q: Does the system provide any alarms for water levels?
A: An optional alarm can be configured to alert you in case of low or no water in the tank, providing added peace of mind and enabling prompt intervention if needed.Q: What are the benefits of using this auto controller over manual monitoring?
A: Automated control minimizes water wastage, prevents pump wear, avoids overflow or dry run, and reduces the need for manual checking. The result is efficient, hands-free operation and extended equipment life.Q: What is the process for installation and setup?

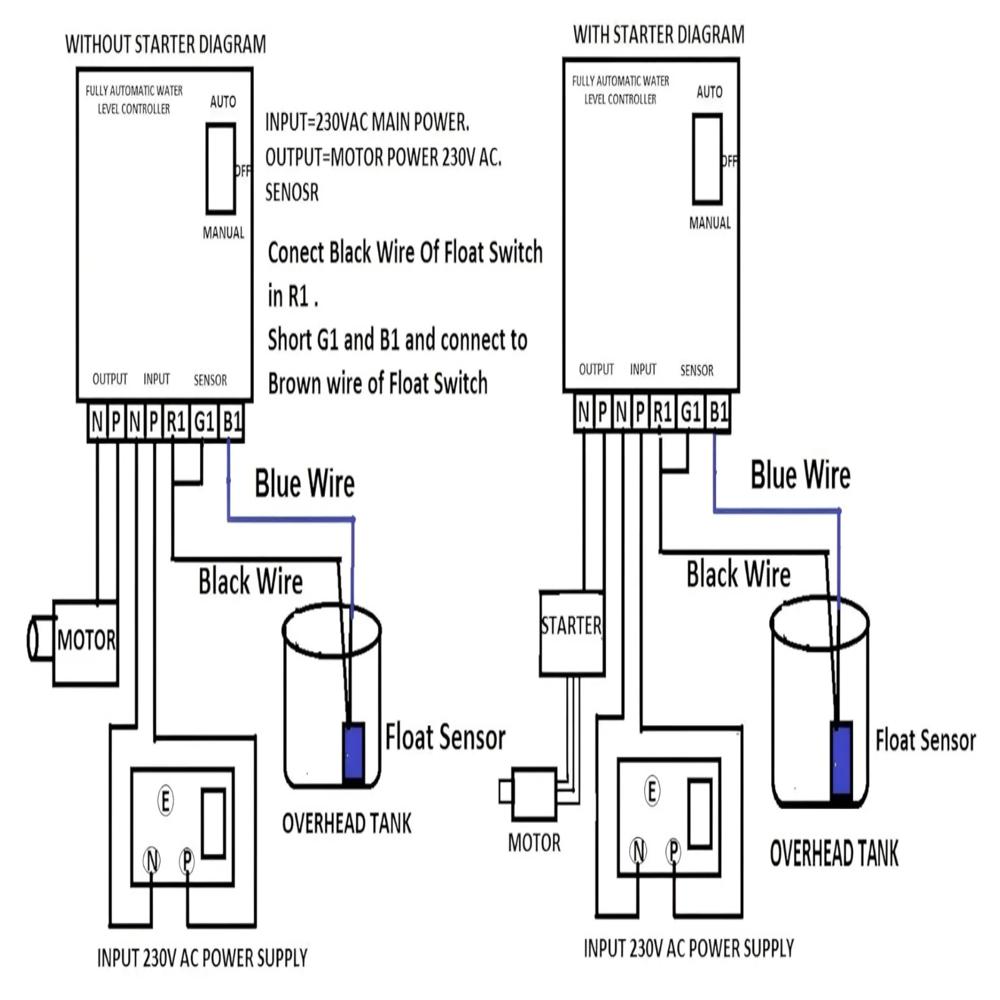

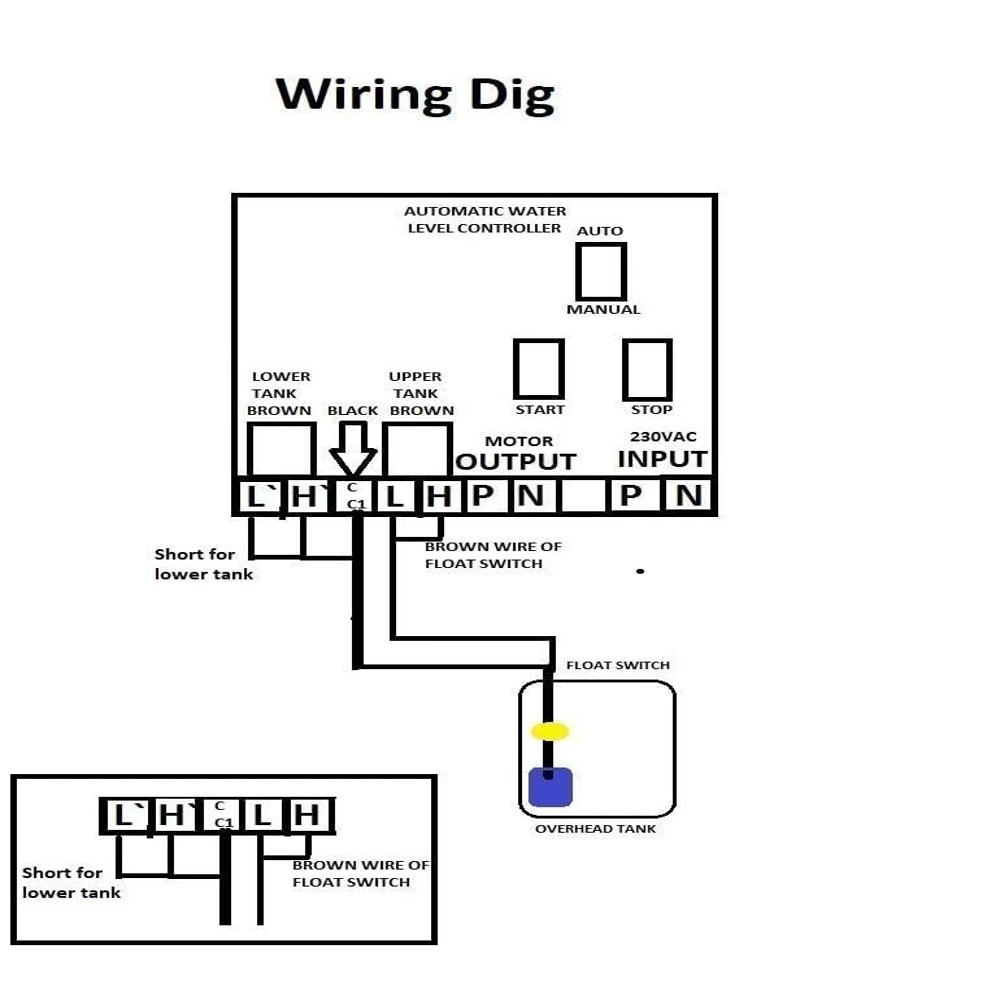

A: Begin by securely wall-mounting the controller box in a safe area. Position the float switch inside your tank at the desired depth (minimum 50mm immersion), connect the wiring as per the user guide, and ensure all connections are insulated. The LED indicators will show operational status, making setup easy to verify.Tell us about your requirement
