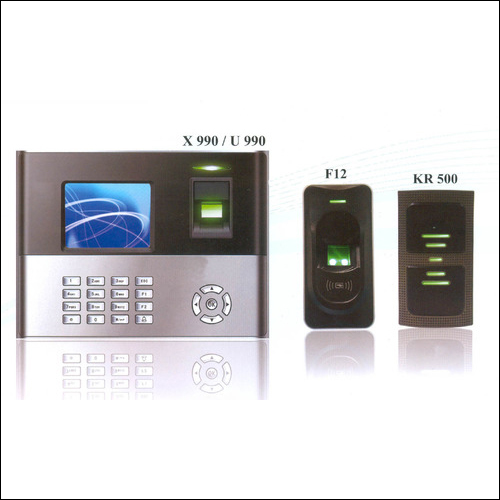

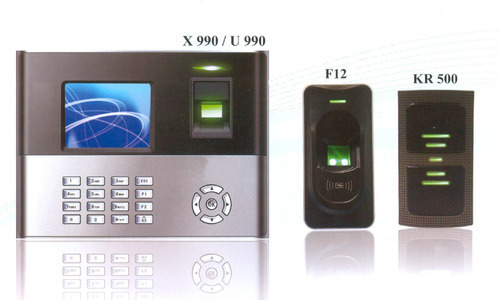

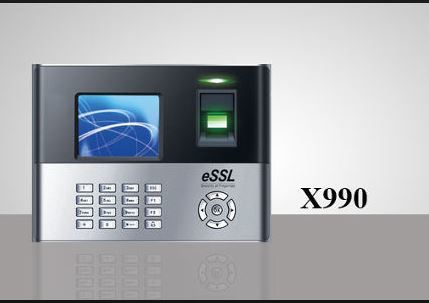

BIOMETRIC TIME ATTENDANCE ACCESS CONTROL X990

About BIOMETRIC TIME ATTENDANCE ACCESS CONTROL X990

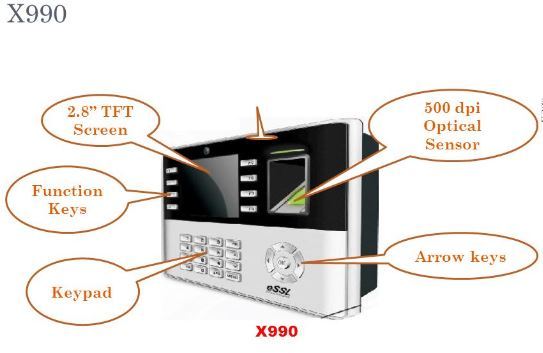

X990 BIOMETRIC TIME ATTENDANCE

Technical Details:

• Fingerprints Templates: 10,000
• Transaction Storage : 1,00,000
• Card Capacity: 10,000
• Card Reader: Inbuilt proximity card reader (optional Mifare)

Communication :

• TCP/IP, USB, Rs232, RS485 (Optional : Wi, GPRS, GPRS+GPS)
• Push Data: Yes (Support both static IP and domain server)
• CPU: 800 Mhz 32-bit Microprocessor
• Fingerprint sensor :500 DPI Optical Sensor
• FAR : <=0.0001% / FRR : <=1%
• Identification Speed : <= 0.5sec
• Algorithm Ver : 10

Product:

• Keypad: Yes
• Schedule Bell/ Speaker: Mini Speaker
• Dimension : 210 x 157 x 40mm

Standard Features:

• Work code, SMS, DLST, Self Service Query, Status Switch

Power & Environment:

• Power Supply: DC 12V, 1.5Amps
• Operating Temperature: 0C to 45C
• Operating Humidity : 20% - 80%

Special Features:

• Wiegand: In & Out
• both 26 or 34 bit (With or without site code)
• Support Fire Alarm: Yes / Door Sensor: Yes
• Anti Pass back: yes / Door Bell: Yes

Optional:

• Battery
• External Speaker output available (Optional)
• External Bulb output available (Optional)
• WIFI & GPS

Compatibility :

• Compatible with Multi-Door controllers via Weigand
• Support External Printer

Access Control:

• Relay: 12V relay for lock EM lock, Bolt Lock or Strike lock
• Support exit reader: FR-1200, Push Button, KR500
